SerialInterface Class Reference

#include <SerialInterface.hpp>

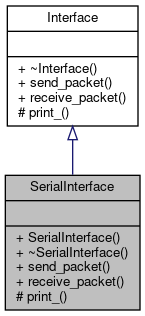

Inheritance diagram for SerialInterface:

Collaboration diagram for SerialInterface:

Public Member Functions
	SerialInterface (std::unique_ptr< SerialPort > port, std::shared_ptr< ConnectionPool > connection_pool, std::unique_ptr< Connection > connection)
	~SerialInterface ()=default
void	send_packet (const std::chrono::nanoseconds &timeout) final
void	receive_packet (const std::chrono::nanoseconds &timeout) final

Protected Member Functions
std::ostream &	print_ (std::ostream &os) const final

Detailed Description

A serial port interface.

An interface (for sending and receiving packets) implementing the serial port protocol.

Definition at line 37 of file SerialInterface.hpp.

Constructor & Destructor Documentation

SerialInterface()

SerialInterface::SerialInterface	(	std::unique_ptr< SerialPort >	port,
		std::shared_ptr< ConnectionPool >	connection_pool,
		std::unique_ptr< Connection >	connection
	)

Construct a serial port interface using a given device.

Parameters

port	The serial port device to communicate over.
connection_pool	The connection pool to use for sending packets the interface has received and to register the connection with.
connection	The connection to get packets to send packets from. This will be registered with the given ConnectionPool.

Exceptions

std::invalid_argument	if the serial port device pointer is null.
std::invalid_argument	if the connection_pool pointer is null.
std::invalid_argument	if the connection pointer is null.

Definition at line 39 of file SerialInterface.cpp.

~SerialInterface()

SerialInterface::~SerialInterface ( )

default

Member Function Documentation

print_()

std::ostream & SerialInterface::print_ ( std::ostream &  os ) const

finalprotectedvirtual

Print the interface to the given output stream.

Parameters

os	The output stream to print to.

Returns

The output stream.

Example:

serial {
    device /dev/ttyUSB0;
    baudrate 115200;
    flow_control yes;
}

Parameters

os	The output stream to print to.

Implements Interface.

Definition at line 121 of file SerialInterface.cpp.

receive_packet()

void SerialInterface::receive_packet ( const std::chrono::nanoseconds &  timeout )

finalvirtual

Receive a packet on the interface.

Parameters

timeout

The maximum amount of time to wait for incoming data.

Reads the data in the serial port's receive buffer or waits for up to timeout until data arrives if no data is present in the serial port buffer.

Implements Interface.

Definition at line 86 of file SerialInterface.cpp.

References PacketParser::parse_byte().

Here is the call graph for this function:

send_packet()

void SerialInterface::send_packet ( const std::chrono::nanoseconds &  timeout )

finalvirtual

Send a packet from one of the interface's connections.

Note

Which connection to take this packet from is not defined but it must not starve any one of the Interface's connections.

Parameters

timeout

The maximum amount of time to wait for a packet to be available for sending.

Writes up to one packet from the contained connection to the serial port.

Implements Interface.

Definition at line 70 of file SerialInterface.cpp.

---

The documentation for this class was generated from the following files:

• SerialInterface.hpp
• SerialInterface.cpp
