SerialPort Class Reference

#include <SerialPort.hpp>

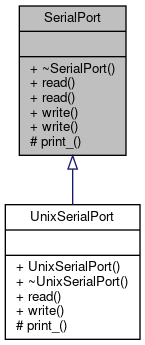

Inheritance diagram for SerialPort:

Collaboration diagram for SerialPort:

Public Types
enum	Parity {   NONE, ODD, EVEN, MARK,   SPACE }
enum	Feature { DEFAULT = 0, FLOW_CONTROL = 1 << 0 }

Public Member Functions
virtual	~SerialPort ()
virtual std::vector< uint8_t >	read (const std::chrono::nanoseconds &timeout=std::chrono::nanoseconds::zero())
virtual void	read (std::back_insert_iterator< std::vector< uint8_t >> it, const std::chrono::nanoseconds &timeout=std::chrono::nanoseconds::zero())
virtual void	write (const std::vector< uint8_t > &data)
virtual void	write (std::vector< uint8_t >::const_iterator first, std::vector< uint8_t >::const_iterator last)

Protected Member Functions
virtual std::ostream &	print_ (std::ostream &os) const

Friends
std::ostream &	operator<< (std::ostream &os, const SerialPort &serial_port)

Detailed Description

The base class of all serial port classes.

This provides an abstraction of serial ports across operating systems.

Warning

This class should be treated as pure virtual and should never be instantiated.

Either read(const std::chrono::nanoseconds &) or read(std::back_insert_iterator<std::vector<uint8_t>>,const std::chrono::nanoseconds &) must be overridden in child classes to avoid infinite recursion.

Either write(const std::vector<uint8_t> &data) or write(std::vector<uint8_t>::const_iterator,std::vector<uint8_t>::const_iterator) must be overridden in child classes to avoid infinite recursion.

Definition at line 44 of file SerialPort.hpp.

Member Enumeration Documentation

Feature

enum SerialPort::Feature

Feature bitflags.

Enumerator
DEFAULT	No special features.
FLOW_CONTROL	Enable flow control.

Definition at line 59 of file SerialPort.hpp.

Parity

enum SerialPort::Parity

Parity options.

Enumerator
NONE	No parity.
ODD	Odd parity, must have odd number of set bits.
EVEN	Even parity, must have even number of set bits.
MARK	Fill parity bit with 1.
SPACE	Fill parity bit with 0.

Definition at line 49 of file SerialPort.hpp.

Constructor & Destructor Documentation

~SerialPort()

SerialPort::~SerialPort ( )

virtual

Definition at line 31 of file SerialPort.cpp.

Member Function Documentation

print_()

std::ostream & SerialPort::print_ ( std::ostream &  os ) const

protectedvirtual

Print the serial port to the given output stream.

Parameters

os	The output stream to print to.

Returns

The output stream.

Reimplemented in UnixSerialPort.

Definition at line 104 of file SerialPort.cpp.

read() [1/2]

std::vector< uint8_t > SerialPort::read ( const std::chrono::nanoseconds &  timeout = std::chrono::nanoseconds::zero() )

virtual

Read data from the serial port.

Note

The timeout is not guaranteed to be up to nanosecond precision, the actual precision is up to the operating system's implementation but is guaranteed to have at least millisecond precision.

Parameters

timeout

How long to wait for data to arrive on the serial port if there is not already data to read. The default is to not wait.

Returns

The data read from the serial port.

Reimplemented in UnixSerialPort.

Definition at line 47 of file SerialPort.cpp.

Here is the caller graph for this function:

read() [2/2]

void SerialPort::read ( std::back_insert_iterator< std::vector< uint8_t >>  it, const std::chrono::nanoseconds &  timeout = std::chrono::nanoseconds::zero()  )

virtual

Read data from the serial port.

Note

The timeout is not guaranteed to be up to nanosecond precision, the actual precision is up to the operating system's implementation but is guaranteed to have at least millisecond precision.

Parameters

it	A back insert iterator to read bytes into.
timeout	How long to wait for data to arrive on the serial port if there is not already data to read. The default is to not wait.

Definition at line 65 of file SerialPort.cpp.

References read().

Here is the call graph for this function:

write() [1/2]

void SerialPort::write ( const std::vector< uint8_t > &  data )

virtual

Write data to the serial port (blocking write).

Parameters

data	The bytes to send.

Reimplemented in UnixSerialPort.

Definition at line 78 of file SerialPort.cpp.

Here is the caller graph for this function:

write() [2/2]

void SerialPort::write ( std::vector< uint8_t >::const_iterator  first, std::vector< uint8_t >::const_iterator  last  )

virtual

Write data to the serial port (blocking write).

Parameters

first	Iterator to first byte in range to send.
last	Iterator to one past the last byte to send.

Definition at line 89 of file SerialPort.cpp.

References write().

Here is the call graph for this function:

Friends And Related Function Documentation

operator<<

std::ostream & operator<< ( std::ostream &  os, const SerialPort &  serial_port  )

friend

Print the given serial port to the given output stream.

Note

This is a polymorphic print, it will work on any child of SerialPort even if the pointer/reference is to the base class SerialPort.

An example:

serial {
    device /dev/ttyUSB0;
    baudrate 115200;
    flow_control yes;
}

The base SerialPort class will print:

unknown serial port

Parameters

os	The output stream to print to.
serial_port	The serial port (or any child of SerialPort) to print.

Returns

The output stream.

Definition at line 137 of file SerialPort.cpp.

---

The documentation for this class was generated from the following files:

• SerialPort.hpp
• SerialPort.cpp
