UnixSerialPort Class Reference

#include <UnixSerialPort.hpp>

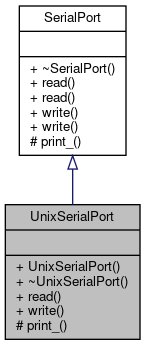

Inheritance diagram for UnixSerialPort:

Collaboration diagram for UnixSerialPort:

Public Types
enum	Parity {   NONE, ODD, EVEN, MARK,   SPACE }
enum	Feature { DEFAULT = 0, FLOW_CONTROL = 1 << 0 }

Public Member Functions
	UnixSerialPort (std::string device, unsigned long baud_rate=9600, SerialPort::Feature features=SerialPort::DEFAULT, std::unique_ptr< UnixSyscalls > syscalls=std::make_unique< UnixSyscalls >())
virtual	~UnixSerialPort ()
virtual std::vector< uint8_t >	read (const std::chrono::nanoseconds &timeout=std::chrono::nanoseconds::zero()) final
virtual void	write (const std::vector< uint8_t > &data) final
virtual void	read (std::back_insert_iterator< std::vector< uint8_t >> it, const std::chrono::nanoseconds &timeout=std::chrono::nanoseconds::zero())
virtual void	write (std::vector< uint8_t >::const_iterator first, std::vector< uint8_t >::const_iterator last)

Protected Member Functions
std::ostream &	print_ (std::ostream &os) const final

Detailed Description

A unix serial port.

Definition at line 34 of file UnixSerialPort.hpp.

Member Enumeration Documentation

Feature

enum SerialPort::Feature

inherited

Feature bitflags.

Enumerator
DEFAULT	No special features.
FLOW_CONTROL	Enable flow control.

Definition at line 59 of file SerialPort.hpp.

Parity

enum SerialPort::Parity

inherited

Parity options.

Enumerator
NONE	No parity.
ODD	Odd parity, must have odd number of set bits.
EVEN	Even parity, must have even number of set bits.
MARK	Fill parity bit with 1.
SPACE	Fill parity bit with 0.

Definition at line 49 of file SerialPort.hpp.

Constructor & Destructor Documentation

UnixSerialPort()

UnixSerialPort::UnixSerialPort	(	std::string	device,
		unsigned long	baud_rate = 9600,
		SerialPort::Feature	features = SerialPort::DEFAULT,
		std::unique_ptr< UnixSyscalls >	syscalls = std::make_unique<UnixSyscalls>()
	)

Construct a serial port.

Parameters

device	The string representing the serial port. For example "/dev/ttyUSB0".
baud_rate	The baud rate in bits per second, the default value is 9600 bps.
features	A bitflag of the features to enable, default is to not enable any features. See SerialPort::Feature for flags.
syscalls	The object to use for unix system calls. It is default constructed to the production implementation. This argument is only used for testing.

Exceptions

std::invalid_argument	if the baud rate is not supported.
std::system_error	if a system call produces an error.

Definition at line 47 of file UnixSerialPort.cpp.

~UnixSerialPort()

UnixSerialPort::~UnixSerialPort ( )

virtual

The serial port destructor.

Closes the underlying file descriptor of the serial port device.

Definition at line 64 of file UnixSerialPort.cpp.

Member Function Documentation

print_()

std::ostream & UnixSerialPort::print_ ( std::ostream &  os ) const

finalprotectedvirtual

Print the serial port to the given output stream.

Parameters

os	The output stream to print to.

Returns

The output stream.

Example:

serial {
    device /dev/ttyUSB0;
    baudrate 115200;
    flow_control yes;
}

Parameters

os	The output stream to print to.

Reimplemented from SerialPort.

Definition at line 360 of file UnixSerialPort.cpp.

References SerialPort::FLOW_CONTROL.

read() [1/2]

std::vector< uint8_t > UnixSerialPort::read ( const std::chrono::nanoseconds &  timeout = std::chrono::nanoseconds::zero() )

finalvirtual

Read data from the serial port.

Note

The timeout is not guaranteed to be up to nanosecond precision, the actual precision is up to the operating system's implementation but is guaranteed to have at least millisecond precision.

Parameters

timeout

How long to wait for data to arrive on the serial port if there is not already data to read. The default is to not wait.

Returns

The data read from the serial port.

Note

The timeout precision of this implementation is 1 millisecond.

Exceptions

std::system_error

if a system call produces an error.

Reimplemented from SerialPort.

Definition at line 77 of file UnixSerialPort.cpp.

read() [2/2]

void SerialPort::read ( std::back_insert_iterator< std::vector< uint8_t >>  it, const std::chrono::nanoseconds &  timeout = std::chrono::nanoseconds::zero()  )

virtualinherited

Read data from the serial port.

Note

The timeout is not guaranteed to be up to nanosecond precision, the actual precision is up to the operating system's implementation but is guaranteed to have at least millisecond precision.

Parameters

it	A back insert iterator to read bytes into.
timeout	How long to wait for data to arrive on the serial port if there is not already data to read. The default is to not wait.

Definition at line 65 of file SerialPort.cpp.

References SerialPort::read().

Here is the call graph for this function:

write() [1/2]

void UnixSerialPort::write ( const std::vector< uint8_t > &  data )

finalvirtual

Write data to the serial port (blocking write).

Parameters

data	The bytes to send.

Exceptions

std::system_error	if a system call produces an error.
PartialSendError	if it fails to write all the data it is given.

Reimplemented from SerialPort.

Definition at line 118 of file UnixSerialPort.cpp.

write() [2/2]

void SerialPort::write ( std::vector< uint8_t >::const_iterator  first, std::vector< uint8_t >::const_iterator  last  )

virtualinherited

Write data to the serial port (blocking write).

Parameters

first	Iterator to first byte in range to send.
last	Iterator to one past the last byte to send.

Definition at line 89 of file SerialPort.cpp.

References SerialPort::write().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• UnixSerialPort.hpp
• UnixSerialPort.cpp
