Call Class Reference

#include <Call.hpp>

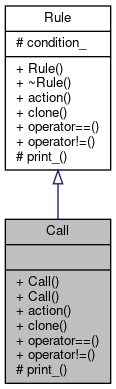

Inheritance diagram for Call:

Collaboration diagram for Call:

Public Member Functions
	Call (std::shared_ptr< Chain > chain, std::optional< If > condition={})
	Call (std::shared_ptr< Chain > chain, int priority, std::optional< If > condition={})
virtual Action	action (const Packet &packet, const MAVAddress &address) const
virtual std::unique_ptr< Rule >	clone () const
virtual bool	operator== (const Rule &other) const
virtual bool	operator!= (const Rule &other) const

Protected Member Functions
virtual std::ostream &	print_ (std::ostream &os) const

Protected Attributes
std::optional< If >	condition_

Detailed Description

Delegate decision on a packet to another Chain.

Rule to delegate the decision on what to do with a packet to a filter Chain. If this chain cannot make a determination (continue action returned), Rule evaluation should resume after this rule.

Definition at line 43 of file Call.hpp.

Constructor & Destructor Documentation

Call() [1/2]

Call::Call	(	std::shared_ptr< Chain >	chain,
		std::optional< If >	condition = {}
	)

Construct a call rule given a chain to delegate to, without a priority.

A call rule is used to delegate the decision on whether to accept or reject a packet/address combination to another filter Chain. If this called chain does not make a decision then rule evaluation should continue in the calling chain.

Parameters

chain	The chain to delegate decisions of whether to accept or reject a packet/address combination to. nullptr is not valid.
condition	The condition used to determine the rule matches a particular packet/address combination given to the action method. The default is {} which indicates the rule matches any packet/address combination.

Exceptions

std::invalid_argument

if the given chain pointer is null.

See also

action

Definition at line 48 of file Call.cpp.

Call() [2/2]

Call::Call	(	std::shared_ptr< Chain >	chain,
		int	priority,
		std::optional< If >	condition = {}
	)

Construct a call rule given a chain to delegate to, with a priority.

A call rule is used to delegate the decision on whether to accept or reject a packet/address combination to another filter Chain.

Parameters

chain	The chain to delegate decisions of whether to accept or reject a packet/address combination to. nullptr is not valid.
priority	The priority to accept packets with. A higher number is more important and will be routed first.
condition	The condition used to determine the rule matches a particular packet/address combination given to the action method. The default is {} which indicates the rule matches any packet/address combination.

Exceptions

std::invalid_argument

if the given pointer is null.

See also

action

Definition at line 75 of file Call.cpp.

Member Function Documentation

action()

Action Call::action ( const Packet &  packet, const MAVAddress &  address  ) const

virtual

Decide what to do with a Packet.

Determine what action to take with the given packet sent to the given address. The possible actions are documented in the Action class. The continue object is always returned if the condition was set and does not match the packet/address combination.

Parameters

packet	The packet to determine whether to allow or not.
address	The address the packet will be sent out on if the action dictates it.

Returns

The action to take with the packet. If this is the accept object, it may also contain a priority for the packet.

If the condition has not been set or it matches the given packet/address combination then the choice of Action will be delegated to the contained Chain.

If the result from the chain is an accept Action object and no priority has been set on it but this Rule has a priority then the priority will be set.

Implements Rule.

Definition at line 121 of file Call.cpp.

References Rule::condition_, and Action::make_continue().

Here is the call graph for this function:

clone()

std::unique_ptr< Rule > Call::clone ( ) const

virtual

Return a copy of the Rule polymorphically.

This allows Rule's to be copied without knowing the derived type.

Returns

A pointer to a new object with base type Rule which is an exact copy of this one.

Implements Rule.

Definition at line 142 of file Call.cpp.

References Rule::condition_.

operator!=()

bool Call::operator!= ( const Rule &  other ) const

virtual

Inequality comparison.

Compares the type of the Rule and the condition (If) if set.

Parameters

other

The other rule to compare this to.

Return values

true	if this rule is not the same as other.
false	if this rule is the same as other.

Compares the chain and priority (if set) associated with the rule as well.

Implements Rule.

Definition at line 170 of file Call.cpp.

References Rule::condition_.

operator==()

bool Call::operator== ( const Rule &  other ) const

virtual

Equality comparison.

Compares the type of the Rule and the condition (If) if set.

Parameters

other

The other rule to compare this to.

Return values

true	if this rule is the same as other.
false	if this rule is not the same as other.

Compares the chain and priority (if set) associated with the rule as well.

Implements Rule.

Definition at line 157 of file Call.cpp.

References Rule::condition_.

print_()

std::ostream & Call::print_ ( std::ostream &  os ) const

protectedvirtual

Print the rule to the given output stream.

Parameters

os	The output stream to print to.

Returns

The output stream.

Prints "call <Chain Name> <If Statement>" or "call <Chain Name> with priority <If Statement> with priority <priority>" if the priority is given.

Implements Rule.

Definition at line 93 of file Call.cpp.

References Rule::condition_.

Member Data Documentation

condition_

std::optional<If> Rule::condition_

protectedinherited

Definition at line 91 of file Rule.hpp.

---

The documentation for this class was generated from the following files:

• Call.hpp
• Call.cpp
